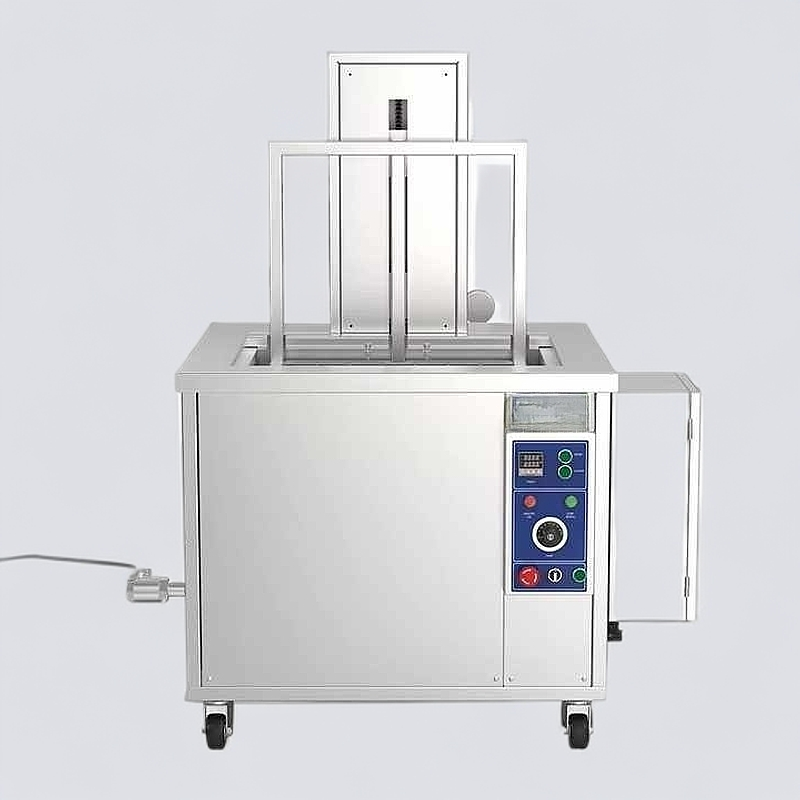

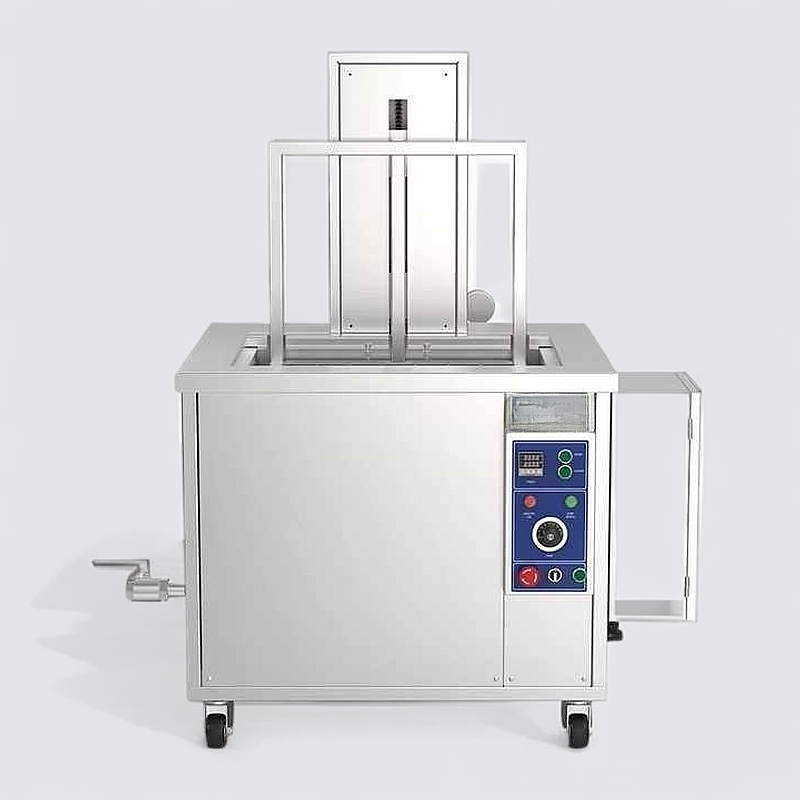

Bestsonicbath/Automatic Ultrasonic Cleaning Machine 360L With Lifting For Car Machinery Parts Oil Removing

No.BSB-IS72B

Ultrasonic cleaning machine with lifting Features:

3600w ultrasonic power, strong cleaning for oil,dust, and rust.
Tank size: 1000*600*600mm ( available for customization).
High heater power 6000w, better cleaning in winter.
With lifting/ elevator, easier and better moving the heavy parts.
Hand welding tank,double sides welding at four corners of the tank, ensure longer life span for tank.
Lifting weight 200kgs (odm 1000kgs available)
Total 72pcs ultrasonic vibrators (60w/pc).
1-99 hours working timer adjustable, meet different cleaning time.
Stainless steel 304 at 2.0mm for thickness, double ensure durable life for tank
With sus304 basket, ensure better loading and move the parts.
Heater temperature : Room temperature to 99℃, better meet solvent temperature requirement.

Our Automatic ultrasonic cleaning machine different production process:
When we install the ultrasonic virabtors on the industrial ultrasonic cleaner, we not only use expansion screws for transducer installing, but also use glue and oven to bake, double ensuring the installing of the transducers. Our transducers are more stable and better touch to the tank, making better cleaning even long time.
Our industrial ultrasonic cleaner machine use high efficiency generator, making high output ultrasonic power, bringing strong cleaning effect .

Get The Latest Quote

Description

Description:
The automatic ultrasonic cleaning machine is a large ultrasonic cleaner machine. It is with 3600w ultrasonic power and 9000w heater power, to ensure good cleaning and removing oil, dust and rust from the engine blocks,dpf,carburetor, turbine blade, cnc part, car parts, machinery parts metal parts. The ultrasonic cleaning machine is by hand welding tank, so the tank size can be made as per customer's project. The ultrasonic cleaning machine is with lift, better moving and heavy parts. The lifting can be load weight from 50kg-100kgs, also 1000kgs available.

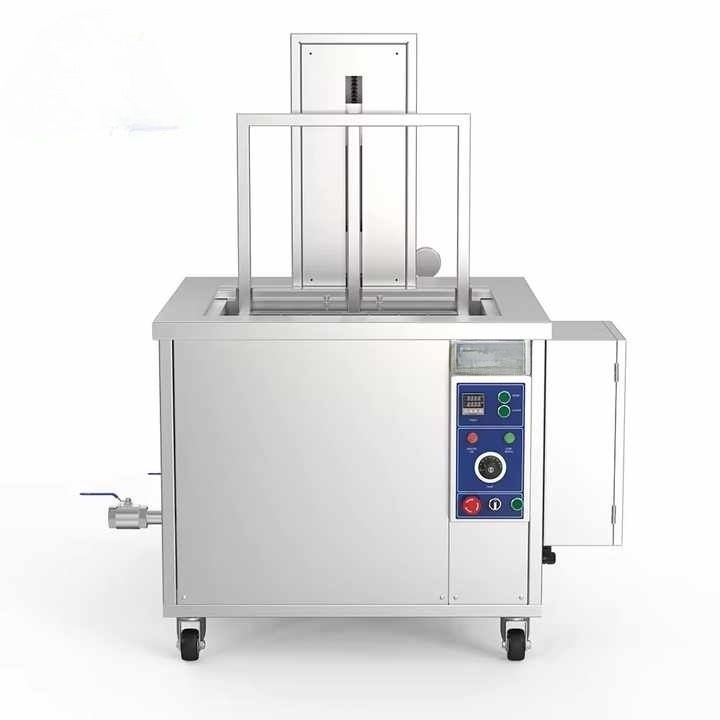

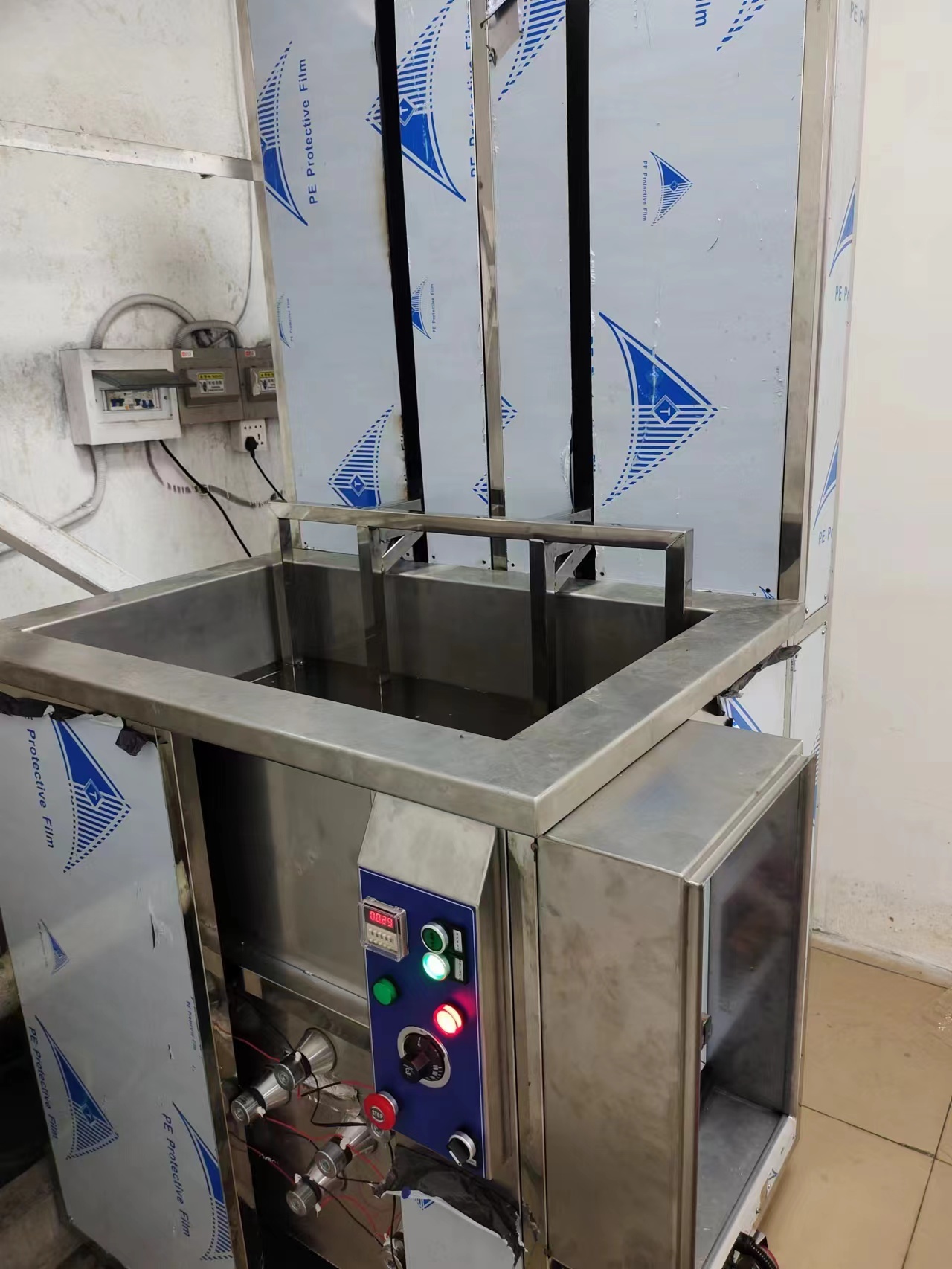

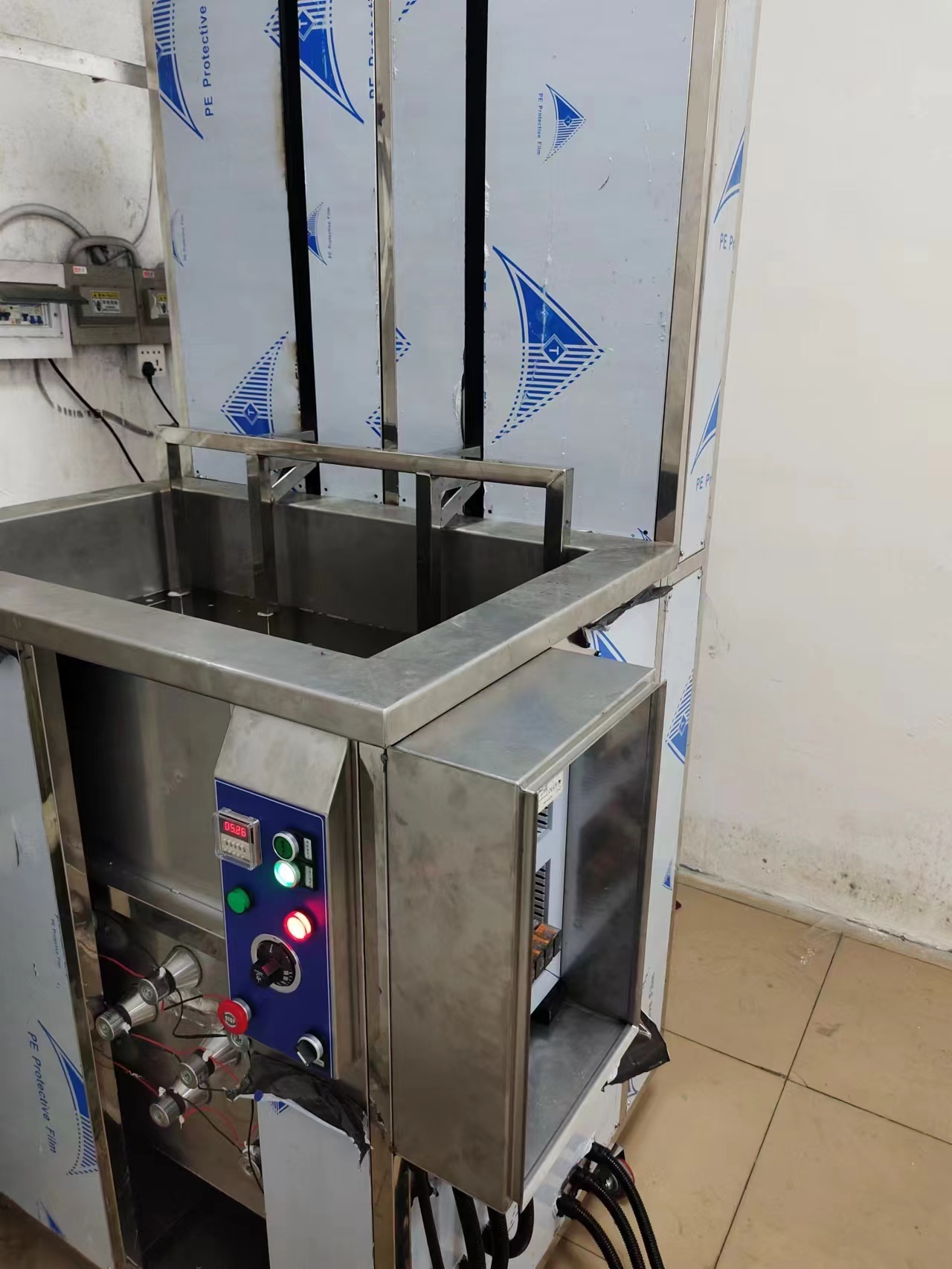

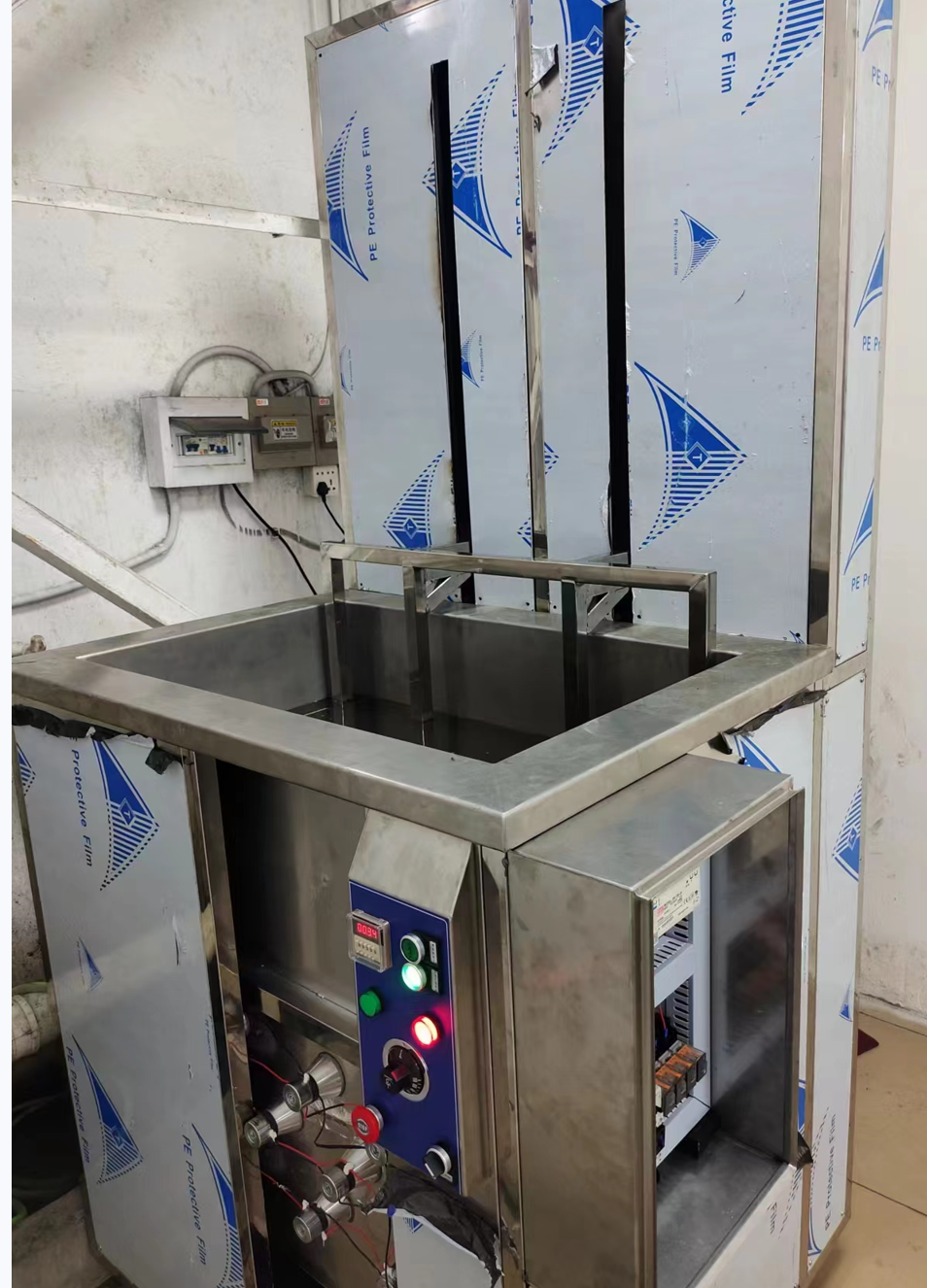

Picture:

Technical data:

Name	ultrasonic cleaning machine with lifting	Item code	BSB-IS72B
Capacity	360 liters	Lifting weight	200kgs (500-100kgs available)
Ultrasonic power	3600w	Tank thickness	sus304 at 2.0mm
Heater power	6000w (9000w available)	Transducer quantity	72pcs x 60w/pc
Frequency	25kHz/28kHz/40kHz	Tank material	sus304 basket
Heater temperature	Room temperature - 99℃ adjustable	Lifting weight	1,standard load 50-100kgs. 2. customized loading 1000kgs available
Timer	1-99 hours adjustable	Lifting weight
Frequency	25kHz/28kHz/40kHz	Function	1, With lifting 2, With filtering system
Tank size	1000600600mm (different size available)	Drainage	Two drainages

What products choose automatic ultrasonic cleaning machine to clean?

Vehicle Industry: Engine blocks, fuel injector,tire, car parts, dpf,
Aerospace Industry: turbine blade, machinery parts
Electronics manufacturing: electronics parts, pcb.
Machinery industry: machinery parts,metal parts,diesel injector
CNC industry : cnc parts.
Motorcycle industry: motorcycle parts,motorcycle engine
Othe industry: metal parts.marine parts.

What's advantage for engine cleaning by ultrasonic cleaning ?

Cleaning situatuon : ultrasonic cleaning with deep cleaning, remove carbon deposits in gap ≤0.05mm,while contional only clean surface dirty .
Dirty residue cleaning ration comparison: ultrasonic cleaning remove residue is ≥ 99.5% and oil cleaning up 98%，while high pressure washing only clean 60-75%;and chemical cleaning only 85-90%.
Cleaning effect comparison: ultrasonic cleaning with completely cleaning, while high pressure cleaning has blind spot, can't ensure completetly cleaning.
Cleaning time conparison: ultrasonic cleaning engine takes 30 minutes, while conventional takes 6.5 hours (need to disassemble engine 2hours ); So ultrasonic cleaning time.
Cleaning cost comparison: each engine ,by ultrasonic cleaning cost about USD15 ; while by high pressure cost USD80 , ultrasonic cleaning cut down 80% of engine cleaning cost.
Future maintenance comparison: by ultrasonic cleaning, part maintenace is only 0.9%, while by high pressure cleaning is 6.7%. Ultrasonic cleaning save repair cost and time for future.

Waste water comparison: ultrasonic cleaning with watse is about 1.8 tons, while conventional cleaing, waste water is 18 tons per months, waste ratio decrease 75%.

What notes to use ultrasonic cleaning machine?

Different material engine blocks, use different cleaning solution
Different dirty on engine blocks require different cleaning time and different temperature
Different dirty ,the waste water is different .
Use Ultrasonic cleaner machine for castings oil cleaning, do not use steam pre-cleaning (microcrack expansion due to thermal shock).
Use ultrasonic cleaner machine for crankshafts cleaning, need to isolate the bearing position during ultrasonic cleaning.
Use ultrasonic cleaner machine to clean complex parts such as turbocharger housings , should use a gas phase ultrasound process (ultrasound + trichloroethylene vapour degreasing).
