BestSonicBath/ Largel Ultrasonic Bath Cleaner 960L With Filtration System

Name: BestSonicBath/ Largel Ultrasonic Bath Cleaner 960L With Filtration System
Brand: MY SHOP
SKU: BSB-IS144A
Availability: InStock
Rating: 5 (1 reviews)

No.BSB-IS144A

Features:

1000L ultrasonic bath cleaner machine.
7200w ultrasonic power, strong cleaning for oil,dust, and rust.
Tank size: 1200*1000*800mm ( tank customization available).
Heater power 24000w, better cleaning in winter.
With filtration system: storage tank+pump+filter core, filter big dirty residue or dirty piece kept in water, ensuring low waste water. The waste water cost decrease 75%.
Hand soldering tank,double sides welding at four corners of the tank, ensure tank won't be broken and damage, avoide leaking of the tank in future.
144pcs industrial ultrasonic transducers ,each at 60w/pc.
1-99 hours working timer adjustable.
Stainless steel 304 for tank, better cleaning effect and longer life for tank.
Stainless steel 304 at 2.0mm for tank, ensuring tank is more durable.
Stainless steel 304 basket supplied, better loading and moving the parts.
The ultrasonic bath machine with castor， easily move to the position you like.
Large tank ,perfect for bearing cylinder, engine blocks, carburetor,turbine blade cleaning .

Get The Latest Quote

Description

Description:
The industrial ultrasonic bath cleaner is a large ultrasonic engine washing equipment. It has 7200w ultrasonic power and with 24000w heater power. The large ultrasonic bath cleaner 960L is with filtering system .Ultrasonic bath washer 960L is popular for oil, dust and rust cleaning from the engine blocks,bearing, gear, dpf,carburetor, turbine blade, cnc part, car parts, machinery parts. The industrial ultrasonic bath cleaner 960L is by hand welding tank, so the tank size can be made as per customer's project.

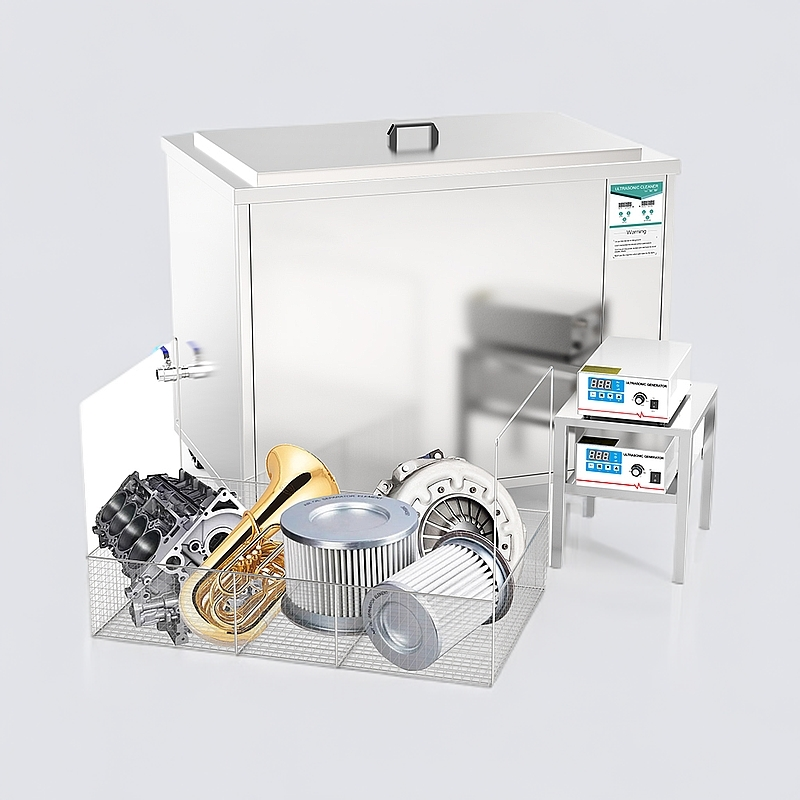

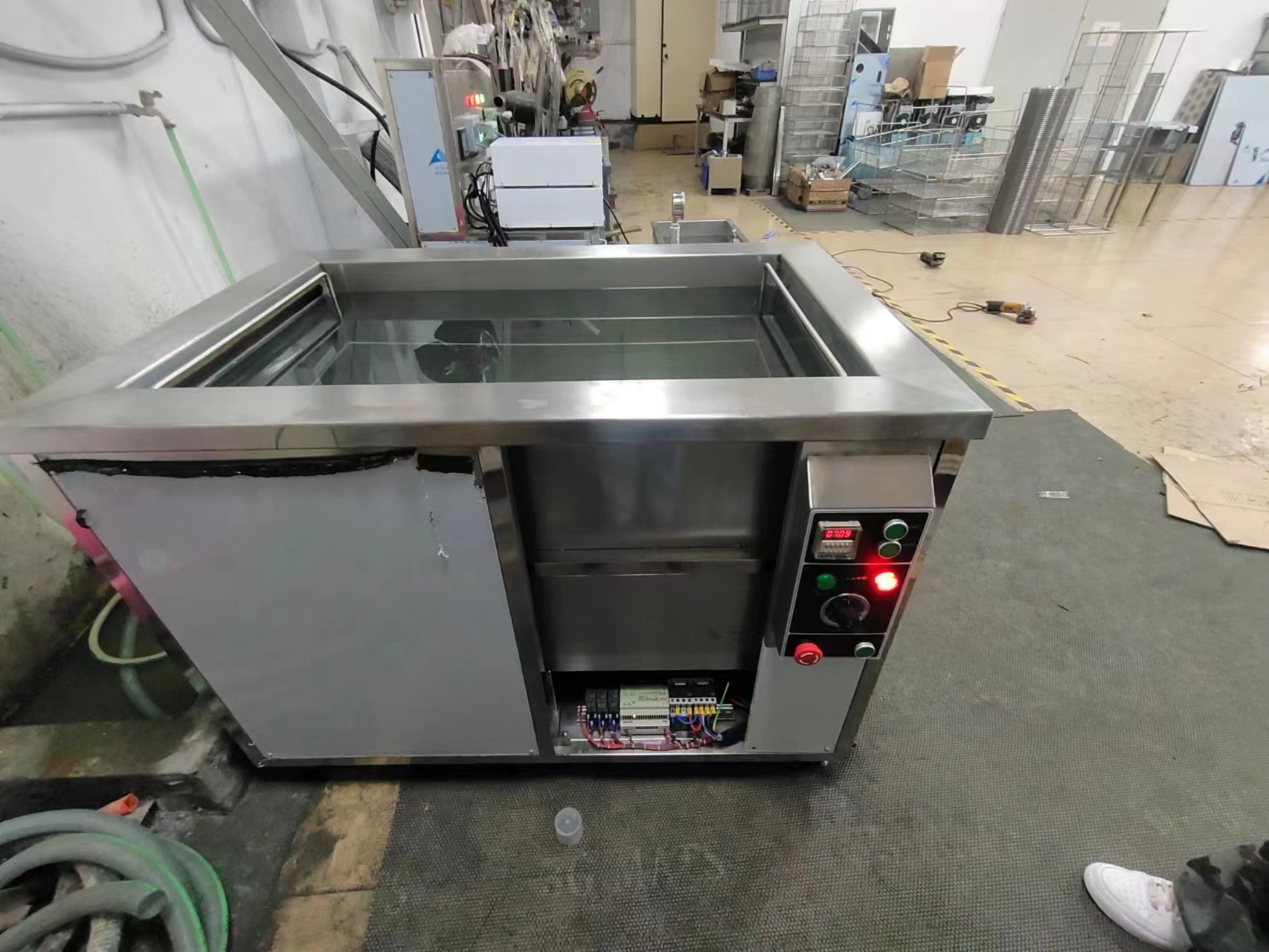

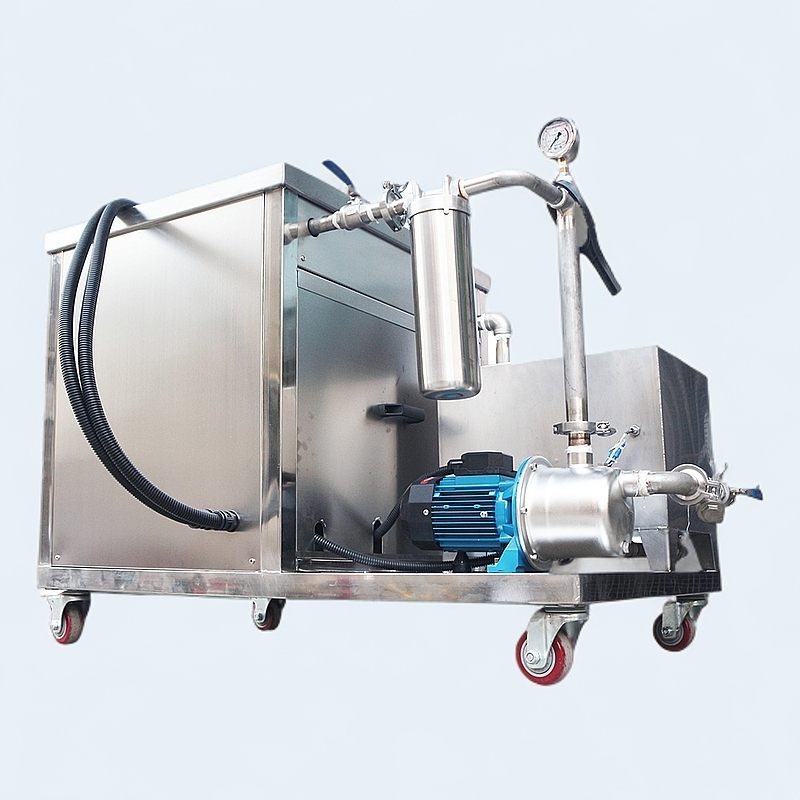

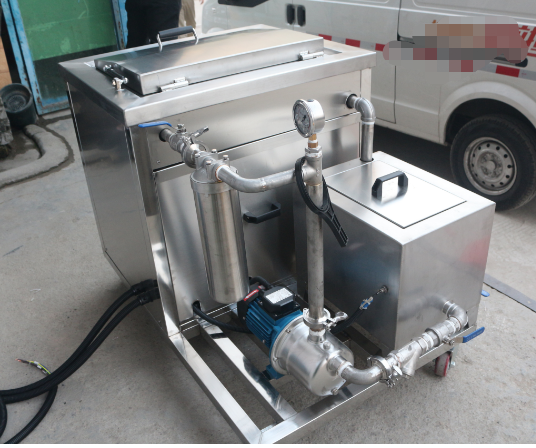

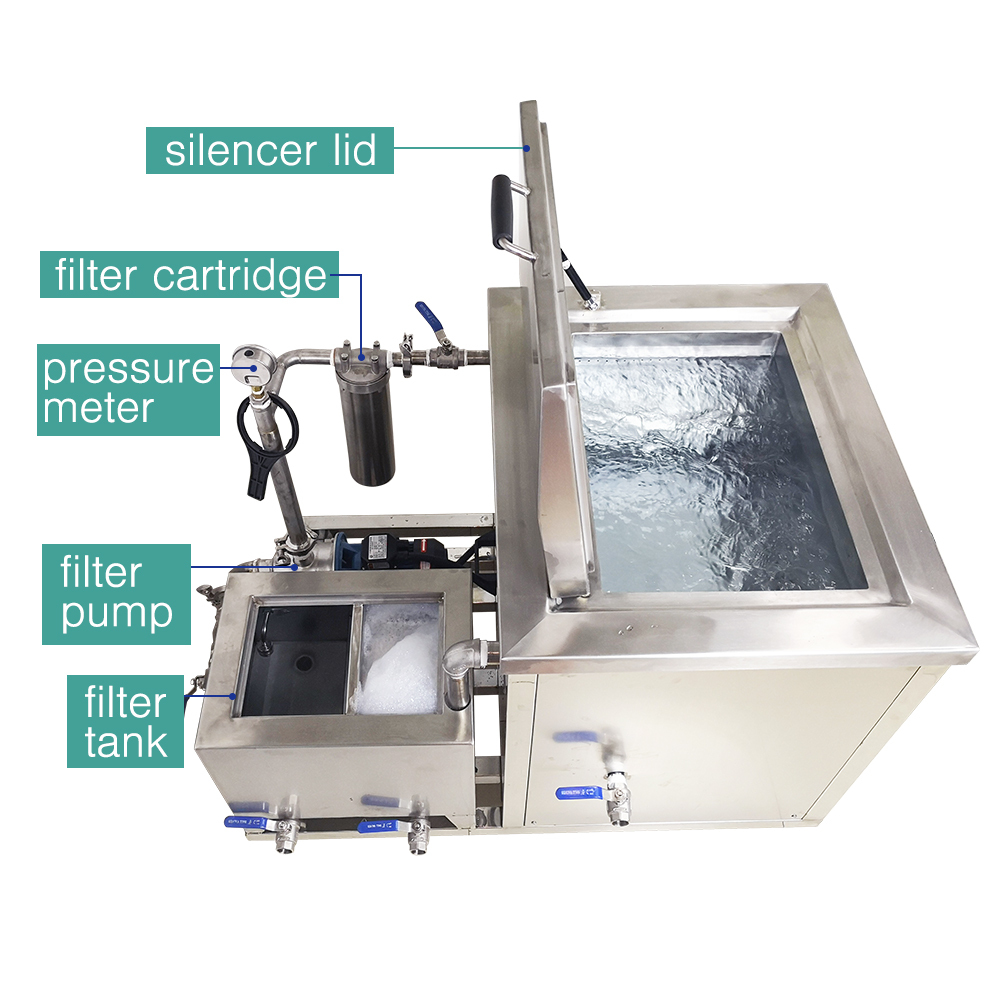

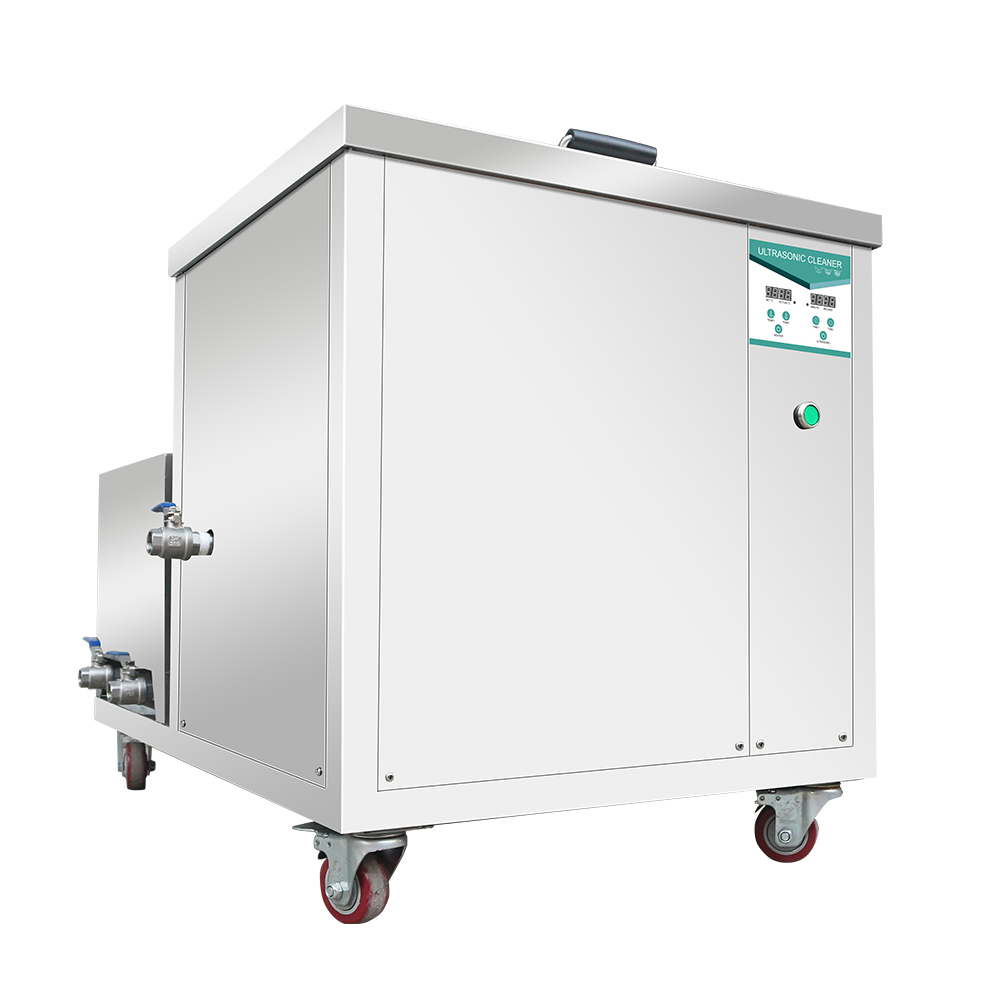

Picture:

Technical data:

Name	ultrasonic bath cleaner	Item code	BSB-IS144A
Capacity	960 liters	Tank material	stainless steel304
Ultrasonic power	7200w	Tank thickness	sus304 at 2.0mm
Heater power	24000w	Transducer quantity	144pcs
Frequency	25kHz/28kHz/40kHz	Transducer type	60w/pc
Heater temperature	Room temperature - 99℃ adjustable	Basket	sus304 basket
Timer	1-99 hours adjustable	Filtration	additonal tank+pump+filter core
Frequency	25kHz/28kHz/40kHz	Function	to clean and remove oil,dust,and rust
Tank size	12001000800mm (tank customization available)	Drainage	Two drainages

Products choose large ultrasonic bath machine to wash:

Machinery parts；Bearing, gear,motor parts.
Vehicle Industry: Engine blocks, fuel injector,tire, car parts, dpf,
Aerospace Industry: turbine blade, machinery parts
Electronics manufacturing: electronics parts, pcb.
Machinery industry: machinery parts,metal parts,diesel injector
CNC industry : cnc parts
Motorcycle industry: motorcycle parts,motorcycle engine
Othe industry: metal parts.marine parts.

Why choose ultrasonic bath washing engine blocks?
There are many advanatges for ultrasonic cleaning engine blocks comparing high pressure/chemical cleaning:

Cleaning situatuon : ultrasonic cleaning with deep cleaning, remove carbon deposits in gap ≤0.05mm,while contional only clean surface dirty .

Dirty residue cleaning ration comparison: ultrasonic cleaning remove residue is ≥ 99.5% and oil cleaning up 98%，while high pressure washing only clean 60-75%;and chemical cleaning only 85-90%.

Cleaning effect comparison: ultrasonic cleaning with completely cleaning, while high pressure cleaning has blind spot, can't ensure completetly cleaning.

Cleaning time conparison: ultrasonic cleaning engine takes 30 minutes, while conventional takes 6.5 hours (need to disassemble engine 2hours ); So ultrasonic cleaning time.
Cleaning cost comparison: each engine ,by ultrasonic cleaning cost about USD15 ; while by high pressure cost USD80 , ultrasonic cleaning cut down 80% of engine cleaning cost.

Future maintenance comparison: by ultrasonic cleaning, part maintenace is only 0.9%, while by high pressure cleaning is 6.7%. Ultrasonic cleaning save repair cost and time for future.

Advantages for ultrasonic cleaning gear :
For gear cleaning, by ultrasonic cleaning is with below advantages than convensional cleaning:

Cleaning effect better, ultrasonic cleaning residue is ≥99.8%，while conventional only clean 67%-72%;
Mini smudge cleaning better, ultrasonic cleaner clean particleat diameterda≥ R0.1mm, while conventional cleaning clean diameter R≥0.5mm.
Hard particle cleaning ratio,ultrasonic cleaning clean particle≥1μm; while conventionall clean ≥25μm, better cleaning.
Cleaning cost lower. By ultrasonic ,waste liquid cost and defective products is decreased 87% comparing conventional cleaning.

How to use ultrasonic bath cleaner to clean gear box?

Pre-clean: 70°C pyrolysis of polyether to dissolve grease matrix.
Main cleaning: 40kHz/80kHz sweep cleaning + non-ionic emulsion
Rinsing.
Drying: Pulse vacuum drying

Cleaning result:
1. 89% reduction in micropitting area。
2.The residual stress on the tooth surface is kept in the safe range of -350±15MPa.
