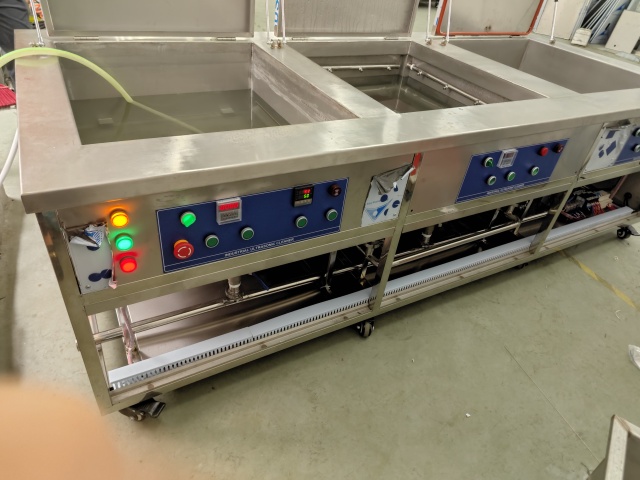

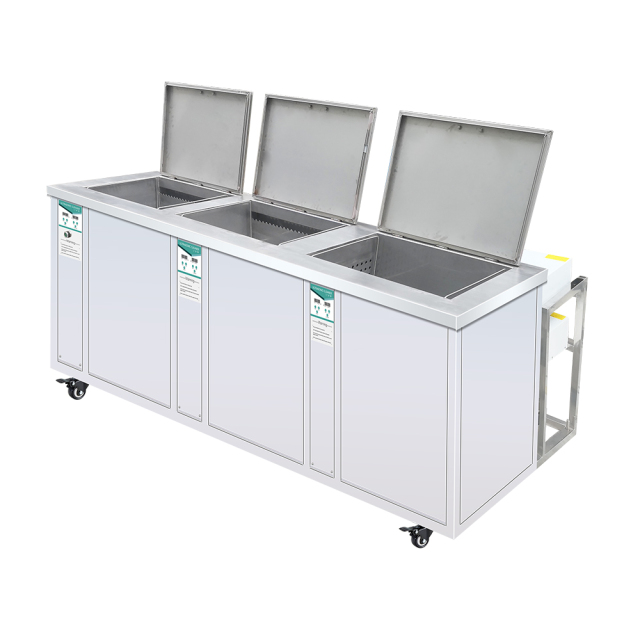

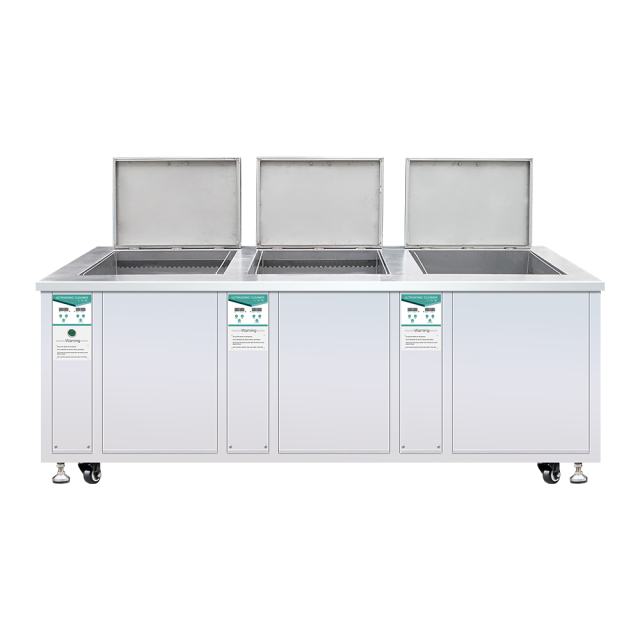

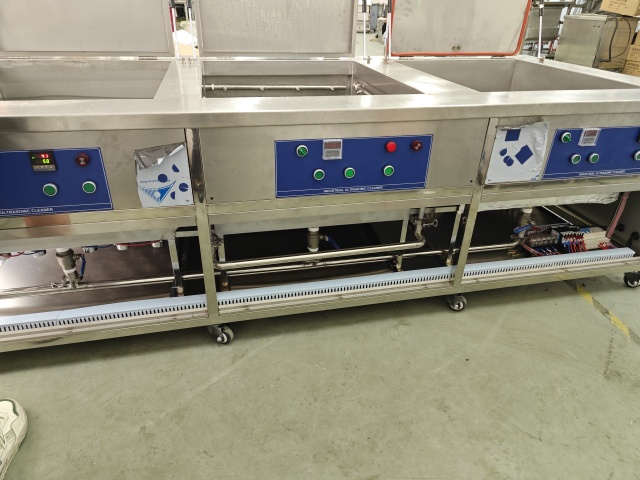

Description:The multi tank ultrasonic cleaner is three tank ultrasonic cleaning machine ,with ultrasonic cleaning +spraying and drying function. The multi tank ultrasonic machine is with 1500w ultrasonic power and 3000w heater power. The three tanks ultrasonic cleaning machine is suiatble electronics parts, mother board, pcb , metal, machinery parts workshop to clean dust and oil or other dirty. Our three tanks ultrasonic cleaning machine is all by odm customization.
The tank is available for customization, and spraying or heater function is also available for changing . All our ultrasonic cleaning machine is use hand welding tank ensure durable for tank; and making long life of the tank. Picture:
The BestSonicBath Multi-Tanks Ultrasonic Cleaning Machine is an advanced cleaning solution designed to meet the demanding needs of various industrial applications. With multiple tanks integrated into one system, it offers a complete ultrasonic cleaning process, including ultrasonic cleaning, spraying, drying, and filtration. This highly versatile machine is ideal for cleaning complex parts that require thorough and consistent results, such as automotive components, medical instruments, and industrial machinery.Multi-Tanks for Comprehensive Cleaning Process:Equipped with multiple tanks, this ultrasonic cleaning machine is capable of performing several stages of cleaning in a single unit. Each tank serves a specific function, from ultrasonic cleaning to filtration, spraying, and drying. The combination of ultrasonic waves, spraying function, and drying ensures that parts are thoroughly cleaned and dried without residue. This multi-functional approach improves cleaning efficiency and reduces manual intervention.Advanced Ultrasonic Cleaning Technology:As a leader among cleaning machine suppliers, BestSonicBath offers an ultrasonic cleaning machine that uses advanced ultrasonic waves to clean parts thoroughly. The ultrasonic waves produce millions of tiny bubbles that effectively remove dirt, grease, oils, and other contaminants from parts. The ultrasonic cleaner line ensures that each part is cleaned evenly and effectively, even in the most intricate areas. This ultrasonic cleaning technology is highly effective for a wide range of parts, from delicate medical devices to robust automotive components.Integrated Spraying and Drying System:The ultrasonic cleaning machine with spraying provides an extra layer of cleaning efficiency by spraying a cleaning solution directly onto the parts. The spraying system ensures that contaminants are washed off thoroughly before the ultrasonic cleaning begins. After the cleaning process, the drying function ensures that the parts are completely dry and free of water spots or residue, ready for use or further processing. This integration of spraying and drying makes this auto ultrasonic cleaning machine ideal for high-precision industries where cleanliness and dryness are critical.Filtration System for Continuous Efficiency:Equipped with an efficient filtration system, this ultrasonic cleaner line ensures that the cleaning solution is continuously filtered during the cleaning process. This not only helps maintain the quality of the cleaning solution but also extends the life of the machine by preventing the buildup of contaminants. The ultrasonic tank factory that manufactures this machine ensures that the filtration system is durable and effective, providing a reliable cleaning solution for heavy-duty use.Ideal for Auto and Industrial Applications:The auto ultrasonic cleaners are particularly beneficial for cleaning automotive parts, such as engine components, brake systems, and other metal parts. The ultrasonic cleaning process combined with spraying and drying ensures that these parts are thoroughly cleaned, free of oils, grease, and contaminants that could affect their performance. This cleaning process is gentle on delicate parts but tough on dirt and debris, making it perfect for auto repair shops and manufacturing plants.Customization Options Available:The ultrasonic cleaner machine line offers a variety of customization options to meet the unique needs of different industries. Whether you need a specific tank size, cleaning time adjustment, or added features, this machine can be customized to your exact specifications. As a leading player in the ultrasonic cleaning equipment market, BestSonicBath is dedicated to providing tailored solutions that fit the cleaning requirements of various applications.Enhanced Cleaning for Complex Parts:With the ability to clean complex, delicate, and intricate parts, this ultrasonic cleaning machine is perfect for industries that require precision cleaning, such as the automotive, aerospace, electronics, and medical industries. Parts with fine details and tight tolerances can be cleaned without the risk of damage, thanks to the advanced ultrasonic technology and integrated spraying and drying systems.Environmentally Friendly and Cost-Efficient:The BestSonicBath Multi-Tanks Ultrasonic Cleaning Machine is designed with environmental sustainability in mind. By using water-based cleaning solutions and reducing the need for harsh chemicals, this machine helps to minimize environmental impact. Additionally, the filtration and drying systems reduce the need for frequent replacement of cleaning solutions, making it a more cost-effective solution for businesses in the long run.Reliable and Durable:Built with high-quality materials, the BestSonicBath Multi-Tanks Ultrasonic Cleaning Machine is designed for long-term use. The sturdy construction ensures that the machine can handle the rigors of industrial environments, providing reliable and consistent performance over time. Whether you're using it for high-volume cleaning or for delicate parts, this machine is built to withstand continuous operation.In conclusion, the BestSonicBath Multi-Tanks Ultrasonic Cleaning Machine is the ideal solution for businesses looking for a complete, efficient, and reliable ultrasonic cleaning process. With its advanced ultrasonic cleaning technology, integrated spraying and drying system, and customizable features, this machine ensures that parts are thoroughly cleaned, dried, and ready for use in a variety of industries.
Technical data:
| Name |
multi tanks ultrasonic cleaner |
Item code |
BSB-IT36B |
| Tank 1 |
Ultrasonic cleaning tank
|
| Capacity |
195 liters x 3 |
Functional |
ultrasonic cleaning +filtering |
| Ultrasonic power |
2400w |
Tank material |
sus304 at 2.0mm |
| Heater power |
4500w |
Transducer quantity |
36pcs |
| Frequency |
25kHz/28kHz/40kHz |
Transducer type |
60w/pc |
| Heater temperature |
Room temperature - 99℃ adjustable |

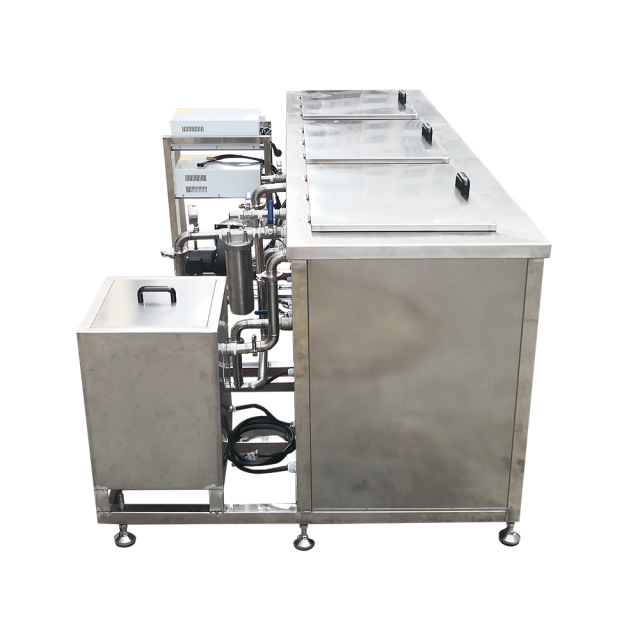

Filter system |
storage tank+pump+filtering core |
| Timer |
1-99 hours adjustable |
Heater temperature |
Room temperature to 99 ℃ |
| Frequency |
25kHz/28kHz/40kHz |
Basket |
sus304 stainless steel |
| Tank 1 size |
750*650*500mm (tank customization available) |
Castor and Lid |
With castor and lid |
| Tank 2 |
Spraying tank
|
| Tank 2 size |
750*650*500mm |
Basket |
304 basket |
| Tank 3 |
Drying tank
|
| Tank size |
750*650*500mm |
Heater power |
4500w |
Blower
power |
275w |
Basket |
304 basket |
What products choose multi tanks ultrasonic cleaning machine to wash?
The multi tanks ultrasonic cleaning system is a automatical ultrasonic cleaning production line, so it is very popular for workshop to clean variety of parts:
- Electronic parts, phone parts, computer parts, controller parts,
- Optic lens : aspherical lens matrix, Infrared Filter Substrate
- Machinery : gear, motor,blade, marine parts
- metal parts: metal, metalic, motorcycle parts,
- molding : Injection molding ,plastic mold.
- Other parts: PCB, mother boards.ect.
- Car parts,engine block parts, dpf parts, braking parts
- Other machinery :motorcycle parts, bicycle parts.
Step to use ultrasonic cleaning system to clean pcb/mother board :
1. Ultrasonic cleaning tank: (40kHz/60℃/5min ) to clean solder paste/flux from mother board.
2.Spraying washing tank: (55℃ deionized water/0.1MPa pressure), to clean μm particle residue.

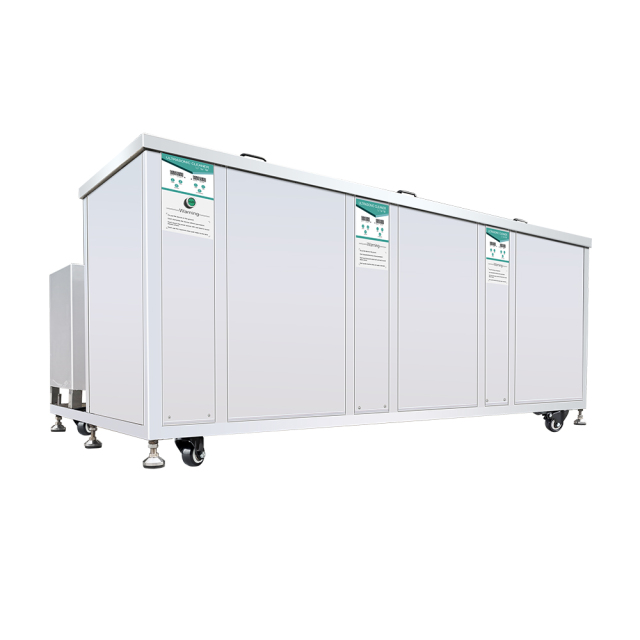

3. Dryer tank: (65℃/15m³/min circulating air) dry the mother boards with zero watermarks and anti-oxidation.
Advantages to use ultrasonic cleaning system to clean mother board/pcb:
1.Increase cleaning effect:
Ion contamination control: single tank cleaning effect is 5.81μg/cm² while three tanks cleaning system cleaning effect is 0.02μg/cm² , contamication decrease 99.6% .
2. Highly increase cleaning efficiency：
- By single tank takes 25 minutes for whole processes, it only takes 8 minutes by three tanks cleaning system.
- The drying speed: By single tank takes 2 hours to dry, three tanks system clean 15 minutes.
- By single tank, every day clean 80pcs, by three tanks system clean 250pcs per day.
3. Zero Damage Guarantee:- Spraying wash: use flexible water flow replace alternative to steel brush , to avoise avoid 0201 resistance off.
- Ion wind to eliminate static electricity (voltage <**5V**, ESD sensitive parts safety).
- Temperature control + air flow to prevent BGA soldering ball micro-cracking(ΔT <3℃/sec.
4. Save cleaning cost :
4.1. Waste liquid volume decrease 82% :
spraying tank with recycle filter and purification system, only use water <3L/batch.
4.2. Power consumption :
Single tank machine power consume: usd0.08/piece, while three-tanks cleaning system only cost usd 0.027/piece, cut 66% consumption.
4.3. Decrease PCB failure rate:
By single tank, the pcb failure ratio is 8.3% ,and by three tanks system, the failure ratio at 0.05%.
5. Full compliance coverage:
1.Meets Military Standard MIL-STD-2000A Cleanliness (Ion Residue <1.56μg/cm²).
2. The drying tank meets the J-STD-033B standard for storage of moisture-sensitive devices.
Notes to choose cleaning solvent for pcb cleaning:
- ultrasonic tank washing: choose water-based environmental cleaning solvent (PH 6.5-7.5) .
- spraying tank: deionized water conductivity ≤ 1μS/cm .
- drying tank: Regularly replace the HEPA filter cartridge(＜0.3μm particles filtered by 99.97%) .
- To clean heterotype parts, can choose rotatable shower frame/basket (rotation ± 15 ° adjustment) to protect parts all directions cleaned well.
