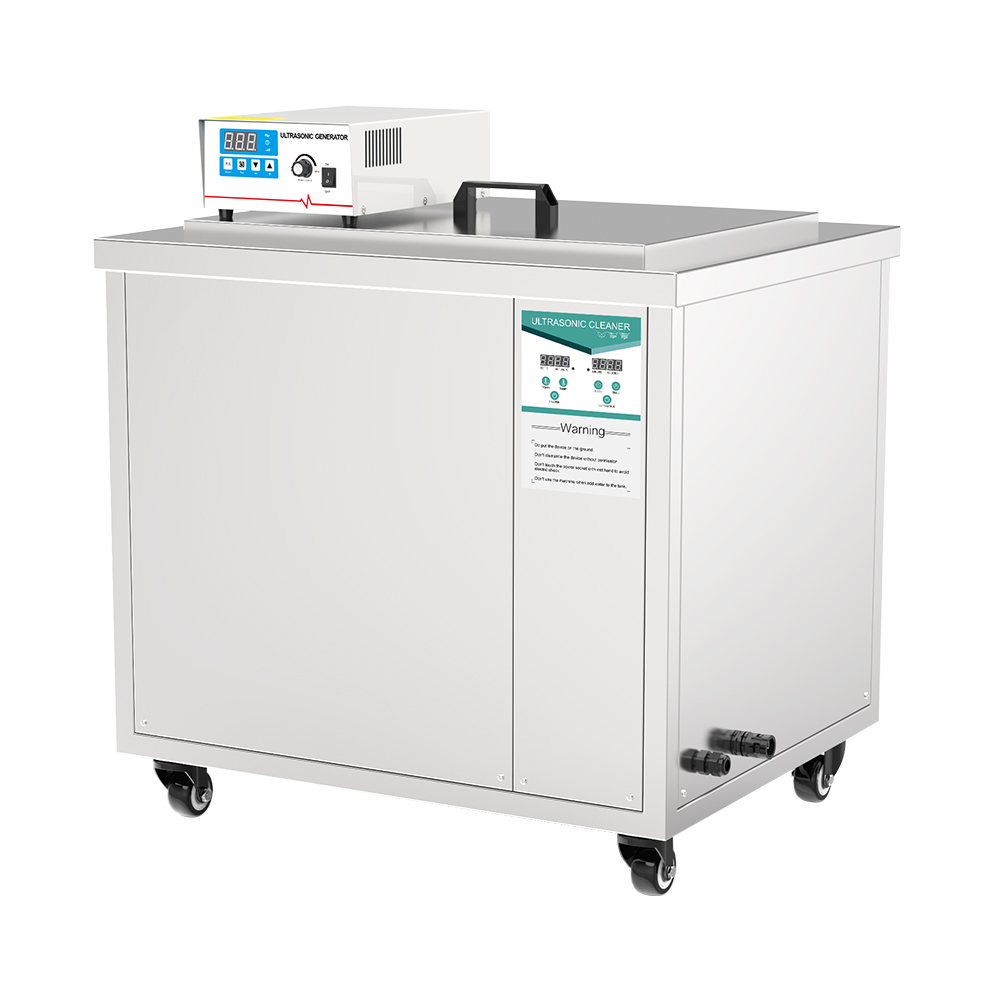

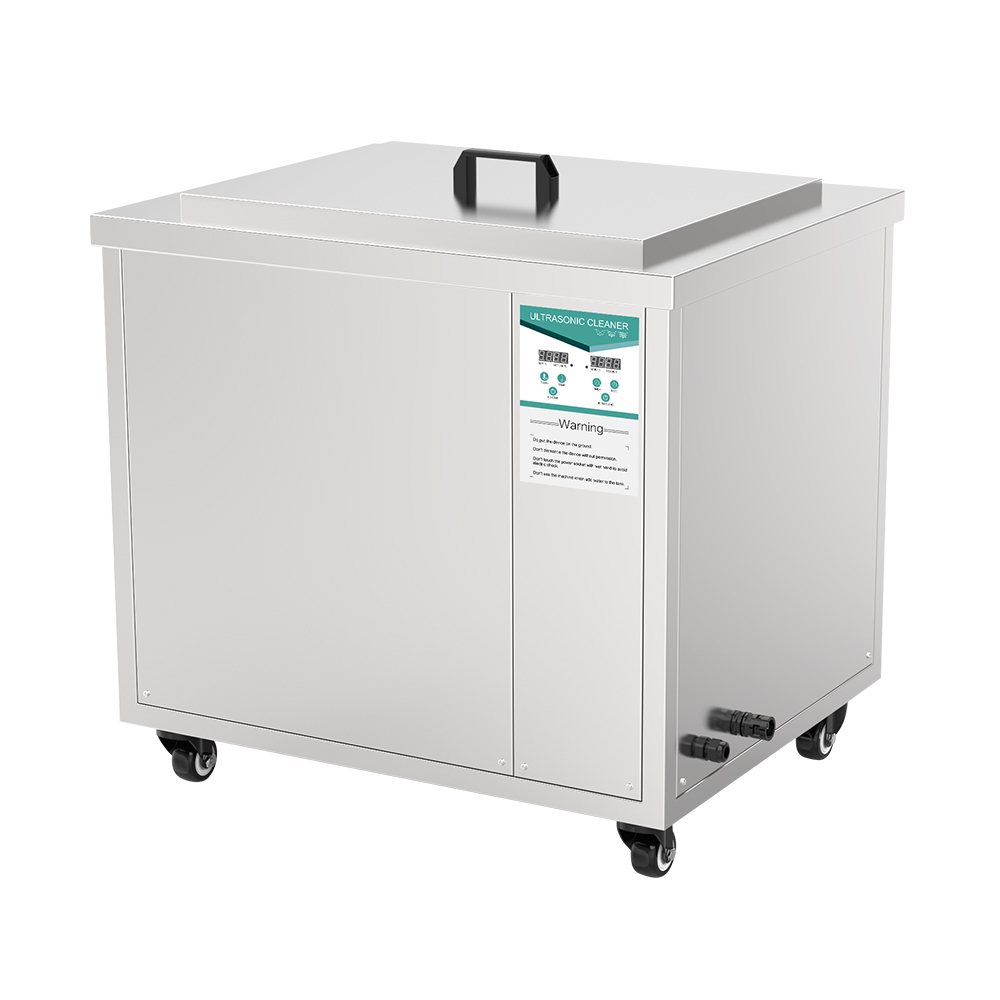

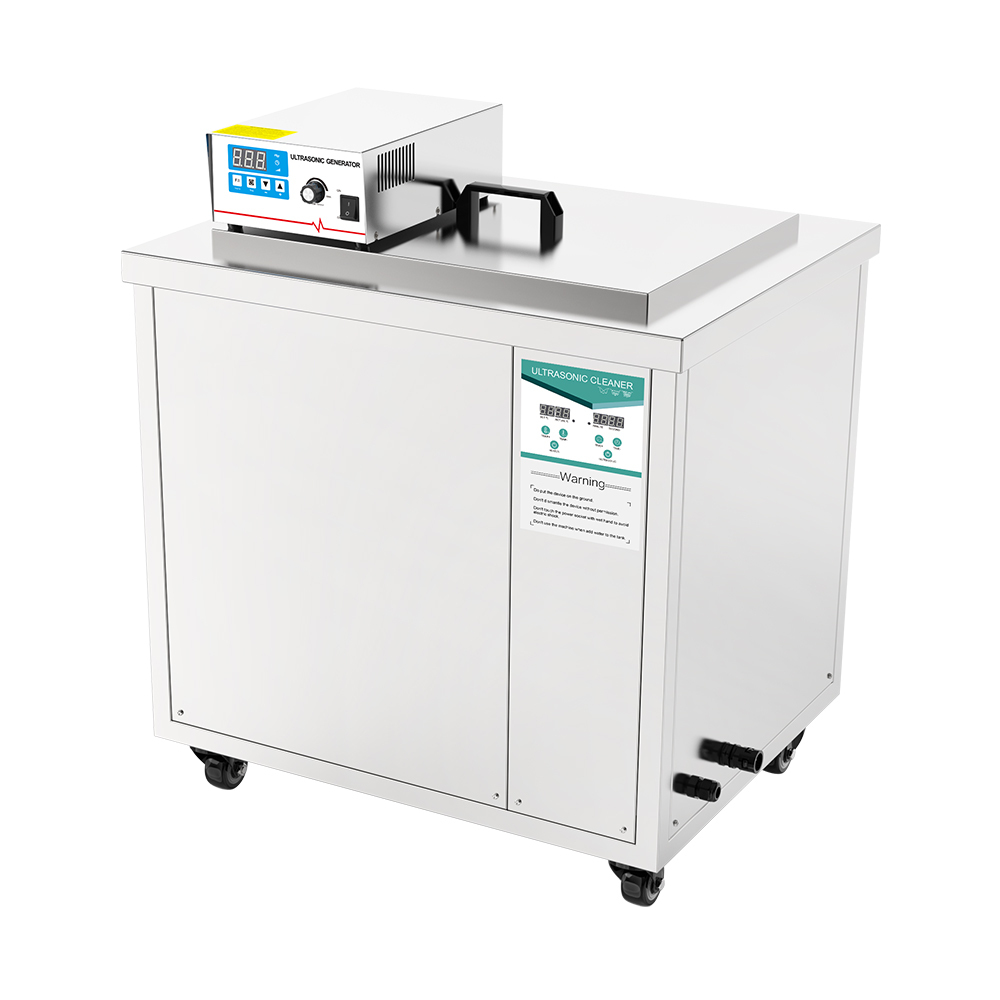

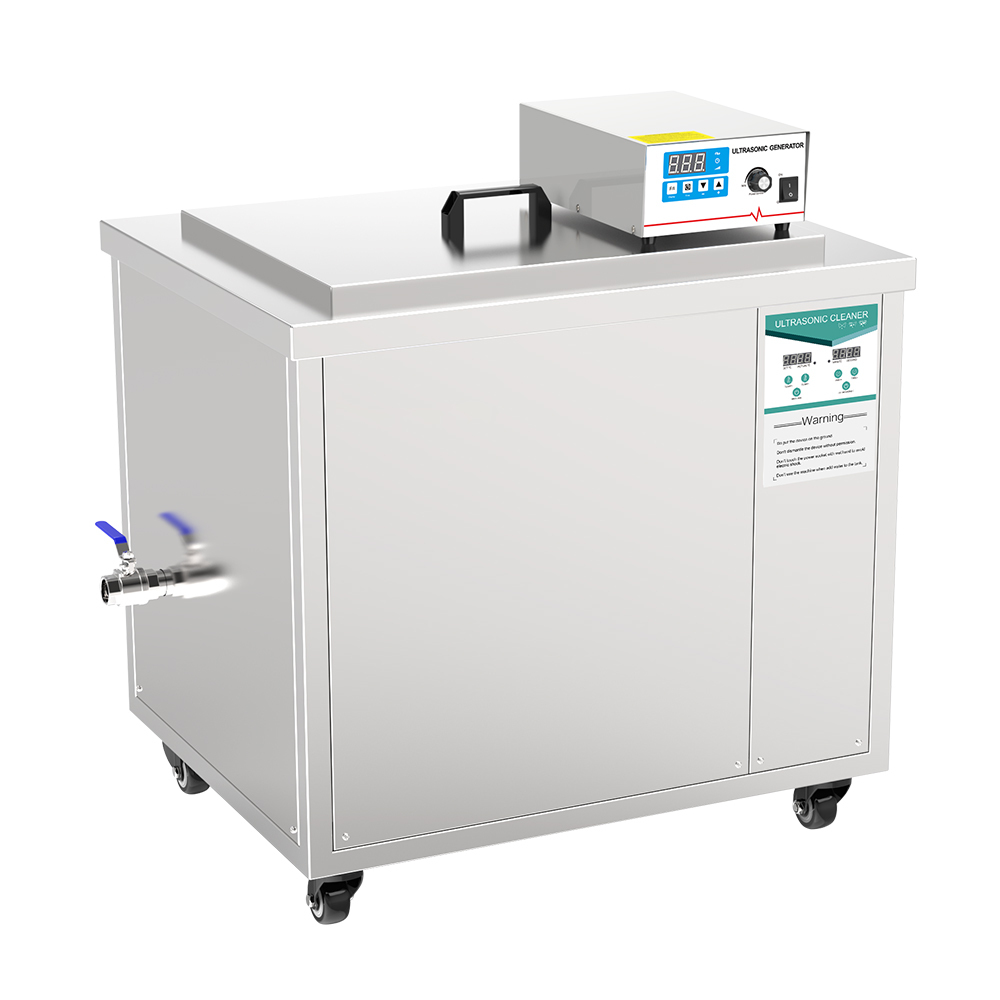

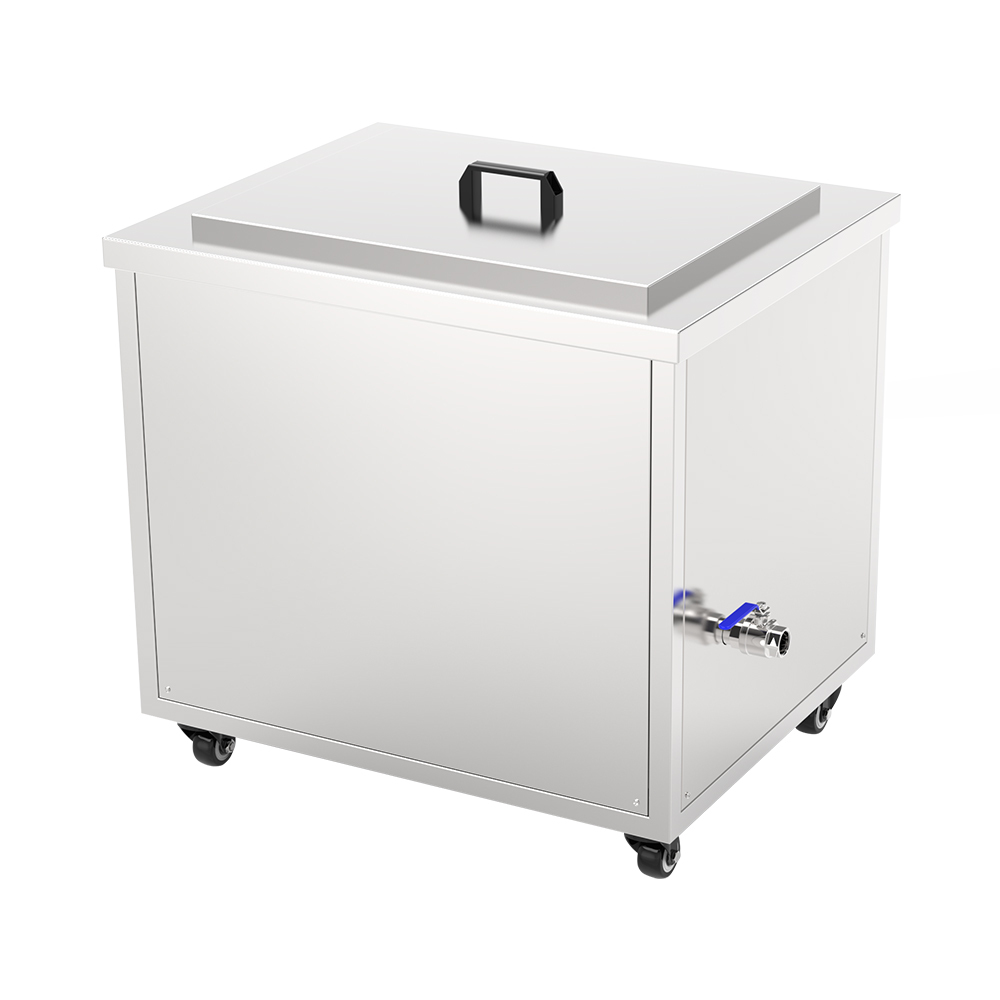

Description:88L ultrasonic cleane is a single tank digital industrial ultrasonic cleaner. It is with 1200w ultrasonic power and with 3000w heater power. The high power of the ultrasonic cleaner machine can ensure good cleaning oil removal the dust and oil from the metal, machinery, nozzle, injector, car parts, electronics parts, mother board etc parts. The industrial ultrasonic cleaner is by hand welding tank, is available for tank customization. The ultrasonic washing tank is by stainless steel304 for material, with thickness at2.0mm, ensuring tank is more durable . Picture:
Technical data:
| Name |
ultrasonic washing machine |
Item code |
BSB-IS24A |
| Capacity |
88liters |
Tank material |
stainless steel304 |
| Ultrasonic power |
1200w |
Tank thickness |
sus304 at 2.0mm |
| Heater power |
3000w (4500w available) |
Transducer quantity |
24pcs |
| Frequency |
25kHz/28kHz/40kHz |
Transducer type |
60w/pc |
| Heater temperature |
Room temperature - 99℃ adjustable |
Basket |
sus304 basket |
| Timer |
1-99 hours adjustable |
Lid |
with lid |
| Frequency |
25kHz/28kHz/40kHz |
Function |
to clean and remove oil,dust,and rust |
| Tank size |
550*400*400mm (tank customization available) |
Filter |
Without filtering |
What electronic can use Digital ultrasonic cleaner to clean?
- PCB components: Bare circuit boards (FR4/ceramic substrates, Type-C/PCIe, Type-C/PCIe).
- Semiconductor device: QFN/QFP package,Power Module Heat Sink Base Plate,wafer carrier)
- Precision mechanical parts: Hard disk drive head assemblies,Optical Module Ceramic Ferrule,Micro stepper motor gear train.
- Optics/Sensors: Camera CMOS Sensor,Lidar emission window (fused silica),Fiber Optic Patchcord Ceramic Sleeve.
The Electronics Do Not Use Ultrasonic Cleaning (Hazardous List):
1. Piezoelectric ceramics: MEMS microphone diaphragm: cracks at 40kHz (structural failure at >1μm amplitude); Quartz crystal oscillator: Frequency shift .
2.Micromechanics: Gyroscope Comb Electrodes,Mechanical Hard Disk Drives.3.Special materials: Beryllium oxide ceramic substrate,Soft magnetic ferrite cores.
To use ultrasonic washing machine to wash electronic parts, there are many advanatges:
1. Ultrasonic cleaning wash mini size dirty and particle;
2.Ultrasonic cleaning cut down machinery damage ratio ;
3. Ensure higher ionzied cleanliness;
4.Ultrasonic cleaning ensure higher green cleaning .
How to use ultrasonic cleaner to wash electronic parts?
1. Preprocessing analysis: what dirty you want to clean ?
(soldering flux, oil , metalic powder, BGA/CSP or QFN,circuit board).
2. Cleaning solution and deviced required:
PCB cleaning: 40±2kHz ultrasonic + Neutral water-based solution + corrosion inhibitor to clean 8 mimutes at 45℃.
3. Cleaning process.
4. Cleaning steps
5. Drying steps.
Ten Prevention and contraindications for using ultrasonic cleaning
1. Do not use 28kHz ultrasonic frequency.
2.Do not use corrosive solvent : sulfur-containing solvents for PCBA cleaning .
3. Incase thermal shock failure
4. Incase electrostatic breakdown.
5. Incase water retention
