Description:
The 10L ultrasonic cleaner is a digital ultrasonic equipment, with digital timer. The 10L ultrasonic cleaner is with 240w ultrasonic power and 40Khz for frequency,
it is widely to used for rust removal, degreasing , dust cleaning. The digital ultrasonic cleaner is with heater power ,degas function and semi wave function. The 10L ultrasonic equipment is widely to clean: metal, bicycle parts, machinery parts, car parts,motorcycle parts, screws, metalic material parts .

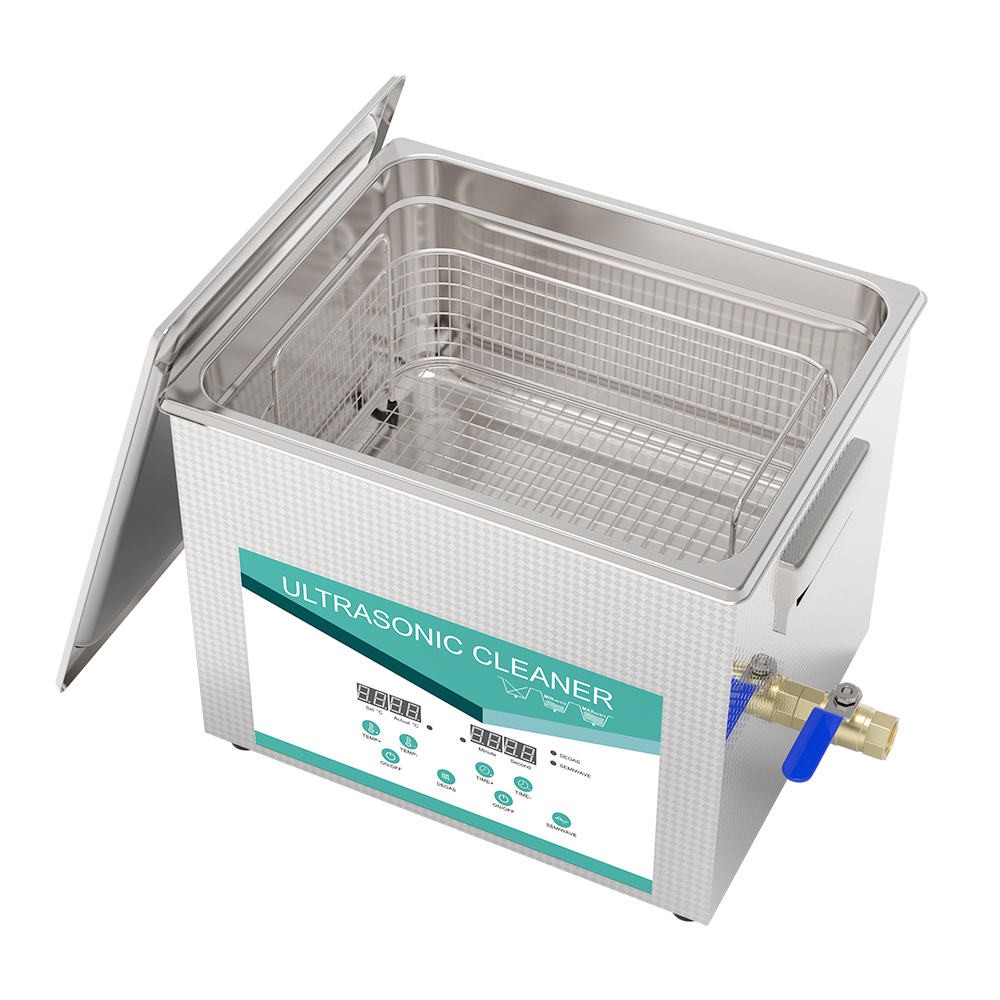

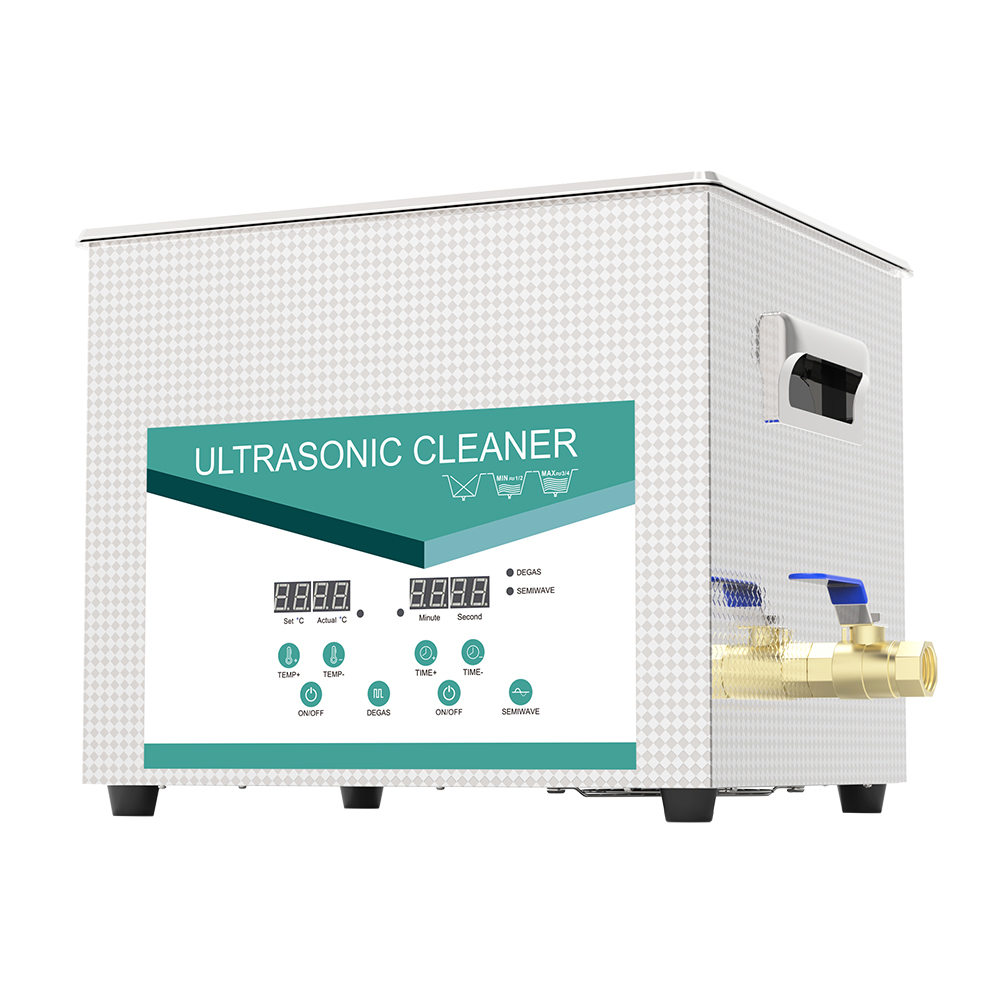

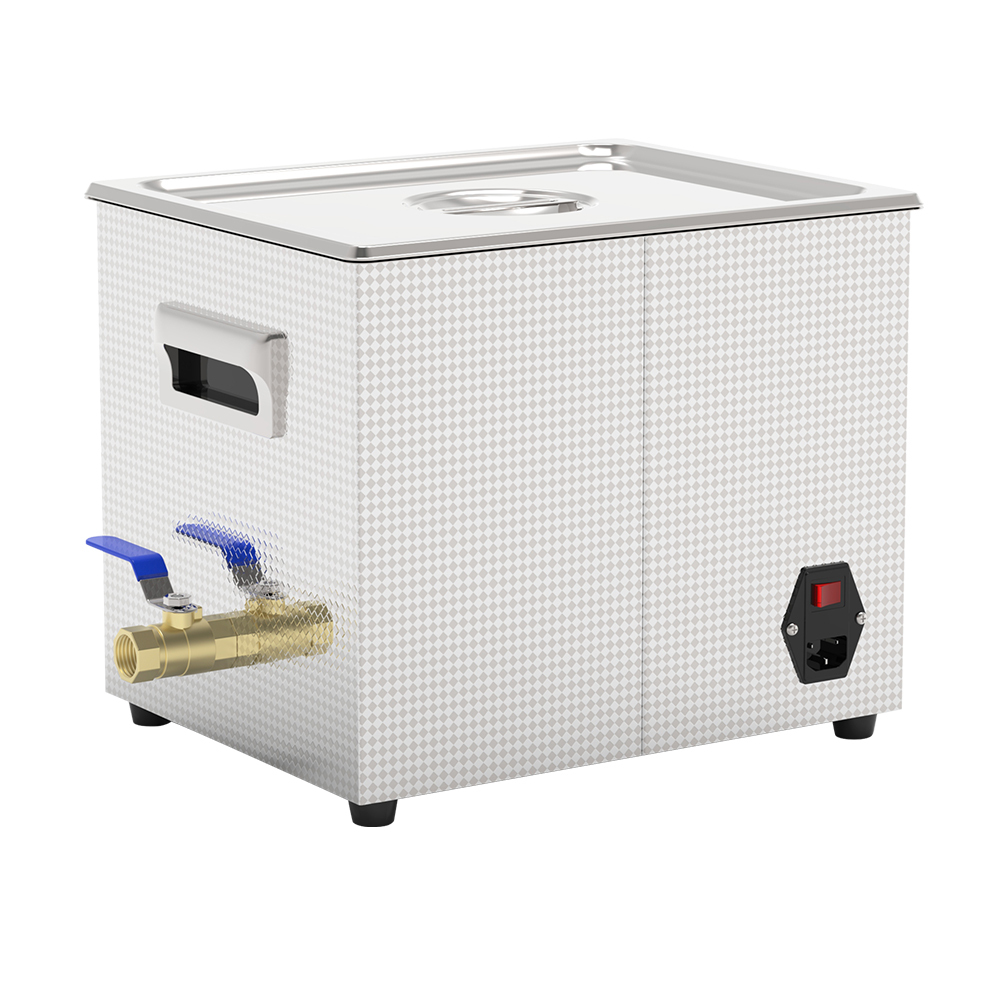

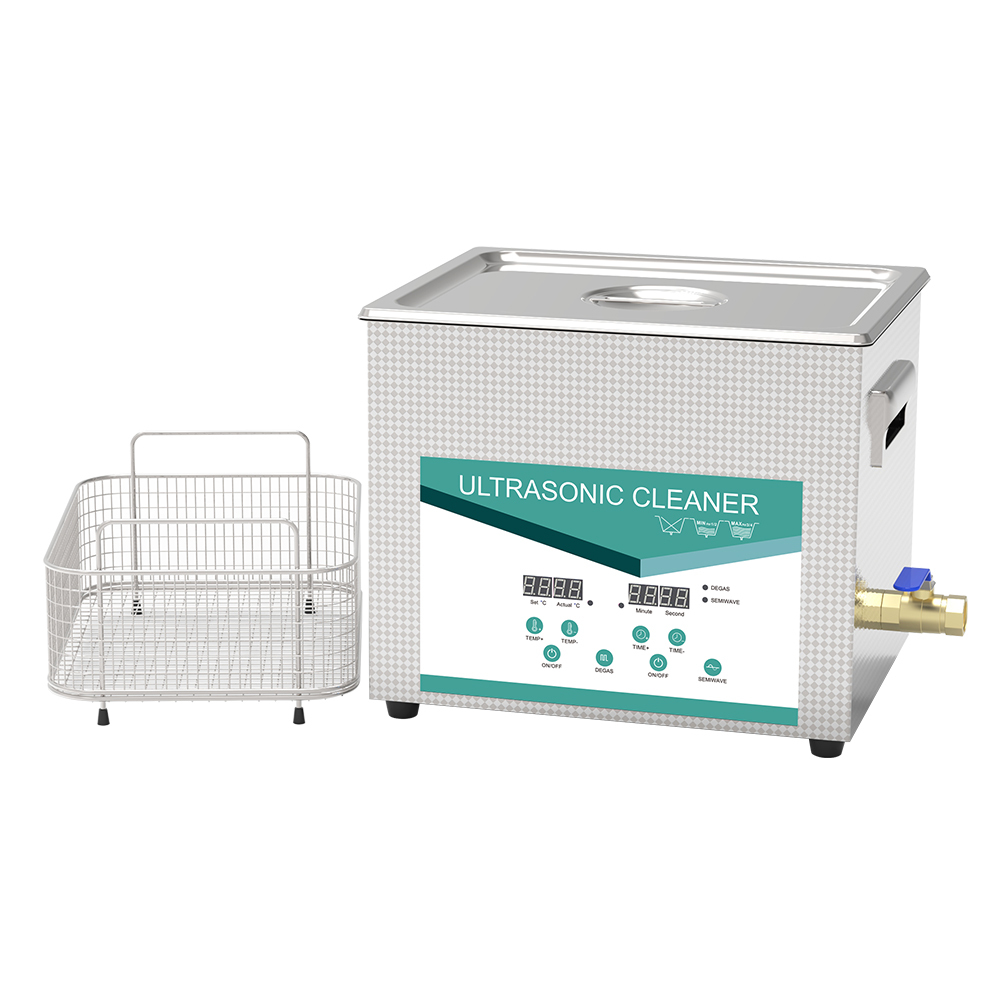

Picture:
Technical data:
| Name |
Benchtop
ultrasonic cleaner |
Item code |
BSB-DB4A |
| Capacity |
10 liters |
Tank material |
stainless steel304 |
| Ultrasonic power |
240w/120w
(Double power) |
Transducer |
60w/pc |
| Heater power |
300w |
Transducer quantity |
4pcs |
| Frequency |
40kHz |
Basket |
sus304 basket |
| Heater temperature |
Room temperature - 80℃ adjustable |
Lid |
with lid |
| Timer |
0-30 minutes adjustable |
Function |
1. semi wave function, can be use for fragile/ high value items try cleaning(10s-40s.
2.Degas function, better cleaning effect.
3. Heater power, better cleaning in winter |
| Tank size |
300*240*150mm |
| Unit size |
325x265x275 mm |
Ultrasonic cleaner 10L applications:
1.Instruments : dental, medical, lab,surgical instruments. lab,dental tools.
2.Jewelry : jewelry tools, gold tools, silver jewelry, golden jewelry, jewellery.
3.Semiconductor : pcb, circuit board,
4.Optic lens : glass, lens, optic lens
5.Machinery : metal, machinery parts,stainless steel parts
6. metal parts: metal, metalic, motorcycle parts, bicycle parts.
7. Home items : razor, shaver, hardware, garage tools
8. Beauty : beauty tools, manuicure tools, beauty instruments.
Key Features:
Power: with 240w ultrasonic power.
Feature: 1. Digital timer 2. With heater power
3. With semi wave and degas function
Tank material: sus304 for tank.
Heater power: with 300 heater power
Basket: with sus304 basket, easy for moving the parts.
What dirty on 3d parts can ultrasonic cleaner wash?
1. Resin: SLA/DLP light-curing parts.
2. Engineering plastics: SLS Nylon Gear,FDM-PC/ABS combination parts.
3. Metal print:SLM Stainless Steel Micro Impeller,metal sintered denture framework (titanium).
Notes to use digital ultrasonic cleaner:
1. Do not use alcohol , if use alcohol, do not use heater power
2. When use heater power, must ensure water up to max line.
3.Do not use inflammable liquid to clean.
Advantages for ultrasonic cleaning 3D parts:
1. ultrasonic cleaning takes 8-12 minutes, conventional cleaning takes 25-40 minutes, ultrasonic cleaning save 1/2- 3/4 cleaning time.
2. Ultrasonic cleaning cut down material damaged ratio : ultrasonic cleaner ratio ＜0.1%, while connventional cleaning ratio up to 5% -18%.
3. Cleaning solvent consumption: Ultrasonic cleaning use 0.3L/ cleaning, while connventional cleaning needs 1.5L- 2.2L on solvent.
4. Ultrasonic cleaning with better cleaning effect, and clean mini size particle dirty.
Notes to use ultrasonic equipment to clean 3D parts:
1.Do not wash the components containing
micro-springs (wire diameter0.3mm).
2. Thermal deformation: Keep cleaning liquid temperature ≤40℃ when cleaning PLA (glass transition temperature sensitive).
3. Frequency exclusion zone: When cleaning ceramic parts, Do not use 80kHz,in case micro-crack extension.
4. Post-treatment: after ultrasonic cleaning, must be rinsed washing with ultra-pure water (to prevent ionic residues from reducing fatigue strength).
